65-75 HP 2WD Backhoe

NEED ASSISTANCE? CALL NOW (855) 253-1369
LB_NSeries_580SuperN_Photo_2_500-33311

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Backhoe
Load Height – Std 10.9 ft in 3330 mm
Reach From Swivel – Std 17.8 ft in 5440 mm
Dig Depth – Std 14.3 ft in 4340 mm
Dimensions
Transport Length 23.3 ft in 7090 mm
Transport Width 7.2 ft in 2180 mm
Transport Height 11.2 ft in 3400 mm
Wheelbase 6.9 ft in 2100 mm
Ground Clearance 1 ft in 305 mm
Height to Top of Cab 9 ft in 2740 mm
Loader
Reach at Max Dump Height 2.6 ft in 785 mm
Dig Depth 6.3 in 160 mm

Specification

Engine
Make John Deere
Model 4045D
Net Power 73 hp 54.4 kw
Gross Power 78 hp 58.2 kw
Power Measured @ 2000 rpm
Torque Measured @ 1000 rpm
Net Torque Rise 28 %
Net Max Torque 216 lb ft 292.9 Nm
Aspiration Naturally Aspirated
Operational
Operating Weight 2wd 12800 lb 5806 kg
Operating Weight 4wd 12800 lb 5806 kg
Max Weight 15090 lb 6845 kg
Fuel Capacity 36 gal 136 L
Hydraulic System Fluid Capacity 24 gal 91 L
Oil System Fluid Capacity 2.3 gal 8.5 L
Cooling System Fluid Capacity 4.2 gal 16 L
Transmission Fluid Capacity 4 gal 15 L
Front Axle Fluid Capacity 2 gal 7.6 L
Rear Axle Fluid Capacity 4.2 gal 16 L
Turning Radius 11.8 ft in 3570 mm
Tire Size Front – 2wd / 4wd 11L-15,8PR F3;12.5/80,12PR
Rear Tires Size 2wd/4wd 16.9-24,8PR R4;19.5L-24,8PR R4
Operating Voltage 12 V
Alternator Supplied Amperage 65 amps
Transmission
Type 4-speed helical cut gear, collar shift transmission synchronized in all gears with hydraulic reverser
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 20.5 mph 33 km/h
Max Speed Reverse 20.5 mph 33 km/h
Backhoe
Dig Depth – Std 14.3 ft in 4340 mm
Dig Depth – Ext 17.9 ft in 5460 mm
Reach From Swivel – Std 17.8 ft in 5440 mm
Reach From Swivel – Ext 21.4 ft in 6530 mm
Bucket Dig Force – Std 11106 lb 5037.6 kg
Load Height – Std 10.9 ft in 3330 mm
Load Height – Ext 13.9 ft in 4240 mm
Loader
Bucket Capacity 1 yd3 0.76 m3
Bucket Breakout Force 8500 lb 38 kN
Lift Capacity at Full Height 6200 lb 2812 kg
Reach at Max Dump Height 2.6 ft in 785 mm
Dig Depth 6.3 in 160 mm
Hydraulic
Pump Type Gear
Pump Flow Capacity 28 gal/min 106 L/min
Relief Valve Pressure 2900 psi 20000 kPa
Dimensions
Transport Length 23.3 ft in 7090 mm
Transport Width 7.2 ft in 2180 mm
Transport Height 11.2 ft in 3400 mm
Height to Top of Cab 9 ft in 2740 mm
Wheelbase 6.9 ft in 2100 mm
Ground Clearance 1 ft in 305 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

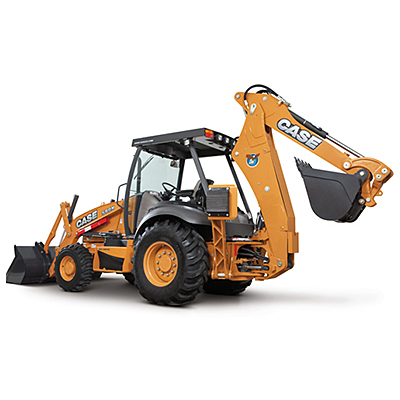

Representative image – models may vary.

Horsepower: 65hp - 74hp
Fuel Type: Diesel
Options: 4WD
Typical Models: Case 580M - John Deere 310G
