86-95 HP Large Backhoe

NEED ASSISTANCE? CALL NOW (855) 253-1369
CASE-580-M8

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Backhoe
Load Height – Std 11.2 ft in 3400 mm
Reach From Swivel – Std 17.8 ft in 5440 mm
Dig Depth – Std 14.3 ft in 4340 mm
Reach at Load Height – Std 8.8 ft in 2670 mm
Dimensions
Transport Length 23.2 ft in 7070 mm
Transport Width 7.2 ft in 2180 mm
Transport Height 11.3 ft in 3420 mm
Wheelbase 7 ft in 2150 mm
Ground Clearance 1.2 ft in 376 mm
Height to Top of Cab 8.9 ft in 2720 mm
Loader
Clearance at Max Dump Height 8.7 ft in 2640 mm
Reach at Max Dump Height 28.2 ft in 717 mm
Dig Depth 7.8 in 199 mm

Specification

Engine
Make Case
Model Family III 445/M2, Tier II certified
Gross Power 80 hp 60 kw
Net Power 76 hp 57 kw
Displacement 272 cu in 4.5 L
Power Measured @ 2200 rpm
Torque Measured @ 1400 rpm
Net Torque Rise 23 %
Number of Cylinders 4
Net Max Torque 231 lb ft 314 Nm
Aspiration Natural
Operational
Operating Weight 2wd 13359 lb 6060 kg
Max Weight 16510 lb 7489 kg
Fuel Capacity 31.4 gal 119 L
Hydraulic System Fluid Capacity 28 gal 106 L
Oil System Fluid Capacity 3.6 gal 13.6 L
Cooling System Fluid Capacity 4.5 gal 16.8 L
Transmission Fluid Capacity 5.5 gal 20.8 L
Front Axle Fluid Capacity 1.5 gal 5.5 L
Rear Axle Fluid Capacity 3.8 gal 14.2 L
Turning Radius 11 ft in 3350 mm
Tire Size Front – 2wd / 4wd 11Lx16.1/12×16.5
Rear Tires Size 2wd/4wd 17.5Lx24/19.5Lx24
Operating Voltage 12 V
Alternator Supplied Amperage 90 amps
Transmission
Type 4-speed synchromesh with hydraulically actuated clutches
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 24.5 mph 39.4 km/h
Max Speed Reverse 29.6 mph 47.6 km/h
Backhoe
Dig Depth – Std 14.3 ft in 4340 mm
Dig Depth – Ext 18.3 ft in 5560 mm
Reach From Swivel – Std 17.8 ft in 5440 mm
Reach From Swivel – Ext 21.8 ft in 6650 mm
Bucket Dig Force – Std 11212 lb 5085.7 kg
Bucket Dig Force – Ext 11212 lb 5085.7 kg
Load at Max Lift – Std 1950 lb 885 kg
Load at Max Lift – Ext 810 lb 367 kg
Load Height – Std 11.2 ft in 3400 mm
Load Height – Ext 13.3 ft in 4040 mm
Reach at Load Height – Std 8.8 ft in 2670 mm
Reach at Load Height – Ext 11.5 ft in 3500 mm
Loader
Bucket Capacity 0.87 yd3 0.67 m3
Bucket Width 82 in 2080 mm
Bucket Breakout Force 9164 lb 40.8 kN
Lift Capacity at Full Height 6182 lb 2804 kg
Clearance at Max Dump Height 8.7 ft in 2640 mm
Reach at Max Dump Height 28.2 ft in 717 mm
Dig Depth 7.8 in 199 mm
Hydraulic
Pump Type gear-type, transmission driven
Pump Flow Capacity 28.5 gal/min 108 L/min
Relief Valve Pressure 3050 psi 146 kPa
Dimensions
Transport Length 23.2 ft in 7070 mm
Transport Width 7.2 ft in 2180 mm
Transport Height 11.3 ft in 3420 mm
Height to Top of Cab 8.9 ft in 2720 mm
Wheelbase 7 ft in 2150 mm
Ground Clearance 1.2 ft in 376 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

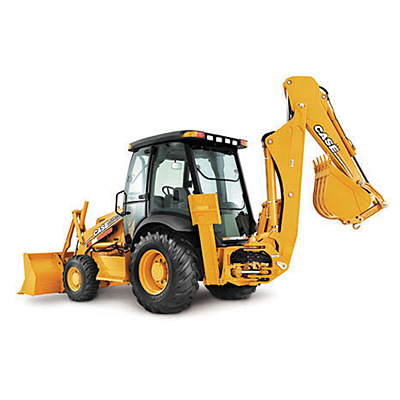

Representative image – models may vary.

Horsepower: 86hb - 95hp
Fuel Type: Diesel
Options: 4WD
Typical Models: Deere 310G - Case 580M
