1,900 lb Skid Steer Track Loader

NEED ASSISTANCE? CALL NOW (855) 253-1369
bobcat_t190

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Dimensions
Length w/ Bucket 10.9 ft in 3310.1 mm
Width Over Tracks 5.5 ft in 1676 mm
Height to Top of Cab 6.4 ft in 1938 mm
Length w/o Bucket 8.5 ft in 2584.7 mm
Clearance at Max Lift and Dump 7.6 ft in 2310 mm
Reach at Max Lift and Dump 2.6 ft in 784 mm
Undercarriage
Length of Track on Ground 4.6 ft in 1401 mm
Track Gauge 4.4 ft in 1356 mm

Specification

Engine
Make Kubota
Model V2003T
Gross Power 61 hp 45.5 kw
Power Measured @ 2800 rpm
Number of Cylinders 4
Displacement 122 cu in 2 L
Operational
Operating Weight 7612 lb 3452.7 kg
Fuel Capacity 28 gal 106 L
Max Speed – high range 7.1 mph 11.4 km/h
Undercarriage
Ground Pressure 4.9 psi 33.8 kPa
Number of Track Rollers per Side 4
Length of Track on Ground 4.6 ft in 1401 mm
Width of Track 12.6 in 320 mm
Track Gauge 4.4 ft in 1356 mm
Loader
Operating Load 1900 lb 861.8 kg
Tipping Load 6851 lb 3107.6 kg
Bucket Capacity 0.52 yd3 0.4 m3
Hydraulic
Pump Flow 16.3 gal/min 61.7 L/min
Relief Valve Pressure 3300 psi 22752.7 kPa
Dimensions
Width Over Tracks 5.5 ft in 1676 mm
Length w/ Bucket 10.9 ft in 3310.1 mm
Length w/o Bucket 8.5 ft in 2584.7 mm
Height to Top of Cab 6.4 ft in 1938 mm
Clearance at Max Lift and Dump 7.6 ft in 2310 mm
Reach at Max Lift and Dump 2.6 ft in 784 mm
Turning Radius from Center – inc bucket 78.8 in 2001 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

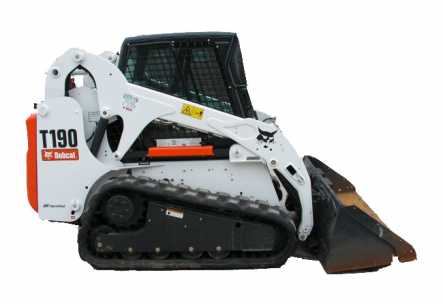

Representative image – models may vary.

Capacity: 1900 lb
Fuel Type: Diesel
Options: Track Loader
Typical Models: Bobcat T140 - T190
