4 yd Articulating Wheel Loader

NEED ASSISTANCE? CALL NOW (888) 325-5172
4 yd Articulating Wheel Loader

Pricing and Availability

Call Now(888) 325-5172Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Bucket
Dump Clearance at Max Raise 10.8 ft in 3280 mm
Dimensions
Length with Bucket on Ground 28.2 ft in 8610 mm
Width Over Tires 9.4 ft in 2875 mm
Height to Top of Cab 11.1 ft in 3380 mm
Wheelbase 10.7 ft in 3260 mm
Ground Clearance 1.3 ft in 408 mm
Hinge Pin – Max Height 14.7 ft in 4490 mm
Reach at Max Lift and Dump 3.7 ft in 1120 mm

Specification

Bucket Capacity – struck3.7 yd32.8 m3

Engine
Make John Deere
Model 6068H, Tier III certified
Net Power 232 hp 173 kw
Power Measured @ 1700 rpm
Displacement 414 cu in 6.8 L
Torque Measured @ 1400 rpm
Number of Cylinders 6
Max Torque 749 lb ft 1016 Nm
Torque Rise 55 %
Aspiration Turbocharged charge air cooled
Operational
Operating Weight 40798.7 lb 18506 kg
Fuel Capacity 93 gal 352 L
Hydraulic System Fluid Capacity 29.1 gal 110 L
Engine Oil Fluid Capacity 6.5 gal 24.5 L
Cooling System Fluid Capacity 7.8 gal 29.5 L
Transmission Fluid Capacity 6.1 gal/td> 23 L
Front Axle/Diff Fluid Capacity 5.8 gal 22 L
Rear Axle/Diff Fluid Capacity 5.8 gal 22 L
Static Tipping Weight 26958.1 lb 12228 kg
Turning Radius 18.3 ft in 5570 mm
Operating Voltage 24 V
Alternator Supplied Amperage 80 amps
Rear Axle Oscillation 26 degrees
Tire Size 23.5 R25
Transmission
Type Countershaft, powershift
Number of Forward Gears 4
Number of Reverse Gears 3
Max Speed – Forward 22.7 mph 36.6 km/h
Max Speed – Reverse 15.5 mph 24.9 km/h
Hydraulic System
Pump Type Variable axial piston
Relief Valve Pressure 3650 psi 25165.8 kPa
Pump Flow Capacity 81.9 gal/min 310 L/min
Raise Time 5.5 sec
Dump Time 1.4 sec
Lower Time 3 sec
Bucket
Breakout Force 30384 lb 135.2 kN
Dump Clearance at Max Raise 10.8 ft in 3280 mm
Bucket Width 10 ft in 3040 mm
Bucket Capacity – heaped 4.3 yd3 3.2 m3
Dimensions
Length with Bucket on Ground 28.2 ft in 8610 mm
Height to Top of Cab 11.1 ft in 3380 mm
Ground Clearance 1.3 ft in 408 mm
Wheelbase 10.7 ft in 3260 mm
Hinge Pin – Max Height 14.7 ft in 4490 mm
Reach at Max Lift and Dump 3.7 ft in 1120 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

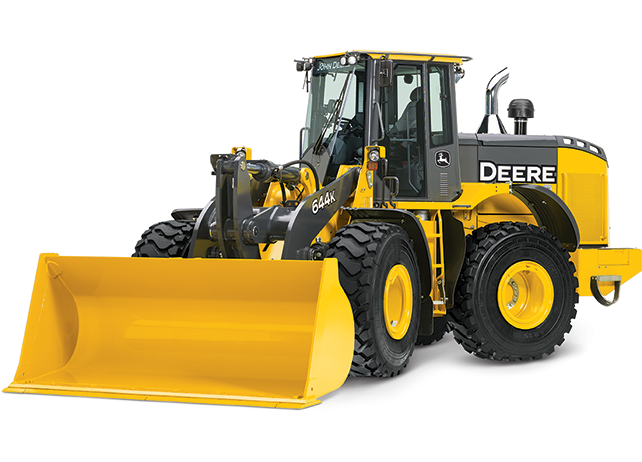

Representative image – models may vary.

Fuel Type: Diesel
Options: Wheel Loaders
Typical Models: Case 621D - John Deere 644K - Komatsu WA250-3
