45,000 – 49,000 lb Crawler Excavator

NEED ASSISTANCE? CALL NOW (855) 253-1369
JohnDeer 180G LC

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Specifications

Dimensions
Transport Length Mono Boom, mm (ft/in) 9040 (29 ft 8 in)
Transport Height – Maximum, mm (ft/in) 3390 (11 ft 1 in)
Overall Width, mm (ft/in) 3000 (9 ft 10 in)
Track Length On Ground, mm (ft/in) 3370 (11 ft 1 in)
Undercarriage Overall Length, mm (ft/in) 4170 (13 ft 8 in)
Tailswing Radius, mm (ft/in) 2550 (8 ft 4 in)
Ground Clearance, mm (inches) 450 (17.7)
Width over standard tracks, mm (ft/in) 3000 (9 ft 10 in)
Track Gauge, mm (ft/in) 2200 (7 ft 3 in)
Digging Reach – Mono Boom, mm (ft/in) 9940 (32 ft 7 in)
Ground Level Reach – Mono Boom, mm (ft/in) 9790 (32 ft 1 in)
Dig Height – Mono Boom, mm (ft/in) 9790 (32 ft 1 in)
Dump Height – Mono Boom mm, mm (ft/in) 6930 (22 ft 9 in)
Dig depth – 2.44m / 8′ft flat bottom, mm (ft/in) 6870 (22 ft 6 in)
Dig Depth – Mono Boom, mm (ft/in) 7070 (23 ft 2 in)
Standard Dipper mm, mm (ft/in) 3210 (10 ft 6 in)
Capacities
Fuel Tank, ltr (gallons (US)) 285 (75.3)
Hydraulic Tank, ltr (gallons (US)) 125 (33)
Number Of Batteries 2
Voltage, V 24
Performance
Ground Bearing Pressure kPa, kPa (PSI) 32 (4.64)
Slew Speed, rpm 12.8
Slew Torque, kNm (lbf / ft) 49 (36029)
Travel Speed – High, kph (mph) 5.3 (3.3)
Tractive Force, kN (lbf) 203 (45636)
Dipper Tearout, kN (lbf) 84 (18875)
Bucket Breakout, kN (lbf) 126 (28244)
Gradeability, % 70
End lift – 7.5m Reach, kg (lbs) 3870 (8320)
Side lift – 7.5m Reach, kg (lbs) 2340 (5010)
Main Pumps – Maximum Flow, lt/min (gallons (US) / min) 382 (101)
Bucket Pressure, bar (PSI) 343 (4980)
Boost Pressure, bar (PSI) 380 (5511)
Weights
Operating Weight, kg (lbs) 20507 (45170)

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

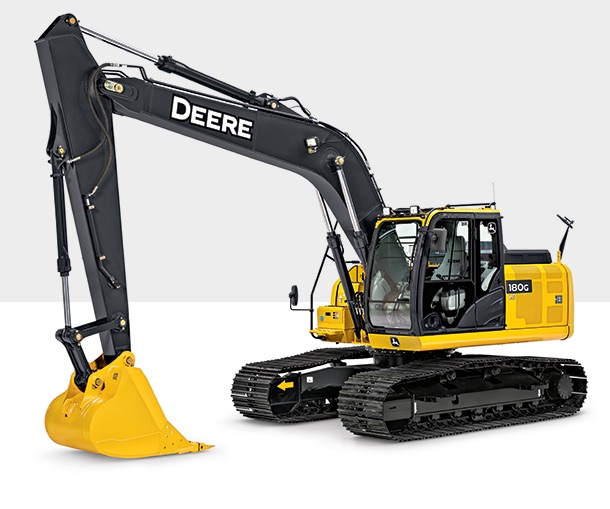

Representative image – models may vary.

Typical Models: John Deere 180G LC
