85,000 – 99,000 lb Crawler Excavator

NEED ASSISTANCE? CALL NOW (855) 253-1369
345cl_caterpillar

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Shipping Length of Unit 39.1 ft in 11910 mm
Shipping Height of Unit 12.3 ft in 3770 mm
Max Loading Height 24.9 ft in 7590 mm
Max Reach Along Ground 41.1 ft in 12520 mm
Max Vertical Wall Digging Depth 19.4 ft in 5910 mm
Max Digging Depth 28.3 ft in 8600 mm
Dimensions
Width to Outside of Tracks 11.4 ft in 3490 mm
Length of Track on Ground 14.3 ft in 4360 mm
Ground Clearance 1.7 ft in 510 mm
Height to Top of Cab 10.5 ft in 3210 mm
Tail Swing Radius 12.3 ft in 3770 mm
Counterweight Clearance 4.3 ft in 1320 mm
Undercarriage
Track Gauge 9 ft in 2740 mm
Shoe Size 30 in 750 mm

Specification

Engine
Make Caterpillar
Model C13 ACERT
Net Power 345 hp 257 kw
Power Measured @ 1800 rpm
Displacement 763 cu in 12.5 L
Number of Cylinders 6
Operational
Operating Weight 99150 lb 44970 kg
Fuel Capacity 186 gal 705 L
Cooling System Fluid Capacity 16 gal 61 L
Hydraulic System Fluid Capacity 150 gal 570 L
Engine Oil Capacity 11 gal 42 L
Swing Drive Fluid Capacity 2.6 gal 10 L
Hydraulic Pump Flow Capacity 190 gal/min 720 L/min
Swing Mechanism
Swing Speed 8.6 rpm
Swing Torque 109560 lb ft 148500 Nm
Undercarriage
Number of Shoes per Side 52
Shoe Size 30 in 750 mm
Number of Carrier Rollers per Side 2
Number of Track Rollers per Side 9
Max Travel Speed 2.7 mph 4.4 km/h
Drawbar Pull 75920 lb 337700 kN
Track Gauge 9 ft in 2740 mm
Buckets
Reference Bucket Capacity 2.5 yd3 1.9 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 R4.3TB-Reach Boom
Shipping Height of Unit 12.3 ft in 3770 mm
Shipping Length of Unit 39.1 ft in 11910 mm
Max Digging Depth 28.3 ft in 8600 mm
Max Reach Along Ground 41.1 ft in 12520 mm
Max Loading Height 24.9 ft in 7590 mm
Max Vertical Wall Digging Depth 19.4 ft in 5910 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 R3.5TB-Reach Boom
Shipping Height of Unit 11.9 ft in 3630 mm
Shipping Length of Unit 39.1 ft in 11920 mm
Max Digging Depth 26.9 ft in 8200 mm
Max Reach Along Ground 39.8 ft in 12150 mm
Max Loading Height 24.5 ft in 7460 mm
Max Vertical Wall Digging Depth 17.7 ft in 5400 mm
Boom/Stick Option (HEX) 3
Boom/Stick Option (HEX) 3 R3.5TB-Reach Boom
Shipping Height of Unit 10.9 ft in 3320 mm
Shipping Length of Unit 38.8 ft in 11840 mm
Max Digging Depth 25.1 ft in 7650 mm
Max Reach Along Ground 38.4 ft in 11710 mm
Max Loading Height 24.3 ft in 7420 mm
Max Vertical Wall Digging Depth 17.1 ft in 5210 mm
Boom/Stick Option (HEX) 4
Boom/Stick Option (HEX) 4 R2.9TB-Mass Excavation Boom
Shipping Height of Unit 11.6 ft in 3520 mm
Shipping Length of Unit 38.9 ft in 11870 mm
Max Digging Depth 23.6 ft in 7200 mm
Max Reach Along Ground 37.1 ft in 11290 mm
Max Loading Height 23.8 ft in 7240 mm
Max Vertical Wall Digging Depth 15.8 ft in 4810 mm
Boom/Stick Option (HEX) 5
Boom/Stick Option (HEX) 5 R4.3TB-Long Reach Boom
Shipping Height of Unit 11.8 ft in 3590 mm
Shipping Length of Unit 40.7 ft in 12390 mm
Max Digging Depth 29.3 ft in 8920 mm
Max Reach Along Ground 42.5 ft in 12960 mm
Max Loading Height 26 ft in 7930 mm
Max Vertical Wall Digging Depth 19.6 ft in 5960 mm
Boom/Stick Option (HEX) 6
Boom/Stick Option (HEX) 6 R3.9TB-Long Reach Boom
Shipping Height of Unit 11.5 ft in 3510 mm
Shipping Length of Unit 40.8 ft in 12410 mm
Max Digging Depth 27.9 ft in 8520 mm
Max Reach Along Ground 41.3 ft in 12600 mm
Max Loading Height 25.6 ft in 7800 mm
Max Vertical Wall Digging Depth 17.8 ft in 5430 mm
Dimensions
Width to Outside of Tracks 11.4 ft in 3490 mm
Height to Top of Cab 10.5 ft in 3210 mm
Ground Clearance 1.7 ft in 510 mm
Counterweight Clearance 4.3 ft in 1320 mm
Tail Swing Radius 12.3 ft in 3770 mm
Length of Track on Ground 14.3 ft in 4360 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

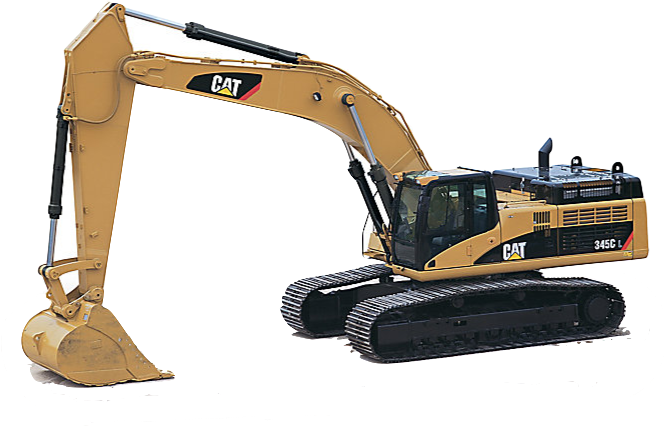

Representative image – models may vary.

Fuel Type: Diesel
Options: 100000 lbs
Typical Models: Cat 345C L
