30,000 – 34,000 lb Crawler Excavator

NEED ASSISTANCE? CALL NOW (855) 253-1369
r4a029772_135g_642x462

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Shipping Length of Unit 25 ft in 7610 mm
Shipping Height of Unit 9 ft in 2740 mm
Max Cutting Height 27.7 ft in 8445 mm
Max Loading Height 20.6 ft in 6285 mm
Max Reach Along Ground 26.3 ft in 8015 mm
Max Vertical Wall Digging Depth 16.1 ft in 4895 mm
Max Digging Depth 17.9 ft in 5445 mm
Shipping Length of Unit 25 ft in 7620 mm
Shipping Height of Unit 9 ft in 2740 mm
Max Cutting Height 28.8 ft in 8775 mm
Max Loading Height 21.7 ft in 6615 mm
Max Reach Along Ground 27.9 ft in 8495 mm
Max Vertical Wall Digging Depth 17.6 ft in 5375 mm
Max Digging Depth 19.5 ft in 5935 mm
Dimensions
Width to Outside of Tracks 8.5 ft in 2590 mm
Length of Track on Ground 9.4 ft in 2880 mm
Ground Clearance 1.4 ft in 440 mm
Height to Top of Cab 9 ft in 2740 mm
Tail Swing Radius 7 ft in 2130 mm
Counterweight Clearance 2.9 ft in 890 mm
Undercarriage
Track Gauge 6.5 ft in 1990 mm
Shoe Size 23.6 in 600 mm

Specification

Engine
Make John Deere
Model 4045H
Net Power 89 hp 66.4 kw
Power Measured @ 2200 rpm
Displacement 276 cu in 4.5 L
Torque Measured @ 1400 rpm
Max Torque 275 lb ft 372.9 Nm
Aspiration Turbocharged air-to-air charge air cooler
Number of Cylinders 4
Operational
Operating Weight 28840 lb 13081.6 kg
Fuel Capacity 66 gal 250 L
Cooling System Fluid Capacity 7 gal 26.5 L
Hydrauilc System Fluid Capacity 35.4 gal 134 L
Engine Oil Capacity 3.7 gal 14 L
Swing Drive Fluid Capacity 0.74 gal 2.8 L
Operating Voltage 24 V
Alternator Supplied Amperage 45 amps
Hydraulic System Relief Valve Pressure 4980 psi 34335.9 kPa
Hydraulic Pump Flow Capacity 55.5 gal/min 210 L/min
Swing Mechanism
Swing Speed 13.7 rpm
Swing Torque 24387 lb ft 33064.3 Nm
Undercarriage
Number of Shoes per Side 44
Shoe Size 23.6 in 600 mm
Number of Carrier Rollers per Side 1
Number of Track Rollers per Side 7
Ground Pressure 4.9 psi 33.7 kPa
Max Travel Speed 3.4 mph 5.5 km/h
Drawbar Pull 22930 lb 102 kN
Track Gauge 6.5 ft in 1990 mm
Buckets
Reference Bucket Capacity 1 yd3 0.79 m3
Minimum Bucket Capacity 0.44 yd3 0.34 m3
Maximum Bucket Capacity 1.4 yd3 1.1 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 8’3″ (2520mm) stick
Shipping Height of Unit 9 ft in 2740 mm
Shipping Length of Unit 25 ft in 7610 mm
Max Digging Depth 17.9 ft in 5445 mm
Max Reach Along Ground 26.3 ft in 8015 mm
Max Cutting Height 27.7 ft in 8445 mm
Max Loading Height 20.6 ft in 6285 mm
Max Vertical Wall Digging Depth 16.1 ft in 4895 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 9’11″ (3010mm) stick
Shipping Height of Unit 9 ft in 2740 mm
Shipping Length of Unit 25 ft in 7620 mm
Max Digging Depth 19.5 ft in 5935 mm
Max Reach Along Ground 27.9 ft in 8495 mm
Max Cutting Height 28.8 ft in 8775 mm
Max Loading Height 21.7 ft in 6615 mm
Max Vertical Wall Digging Depth 17.6 ft in 5375 mm
Dimensions
Width to Outside of Tracks 8.5 ft in 2590 mm
Height to Top of Cab 9 ft in 2740 mm
Ground Clearance 1.4 ft in 440 mm
Counterweight Clearance 2.9 ft in 890 mm
Tail Swing Radius 7 ft in 2130 mm
Length of Track on Ground 9.4 ft in 2880 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

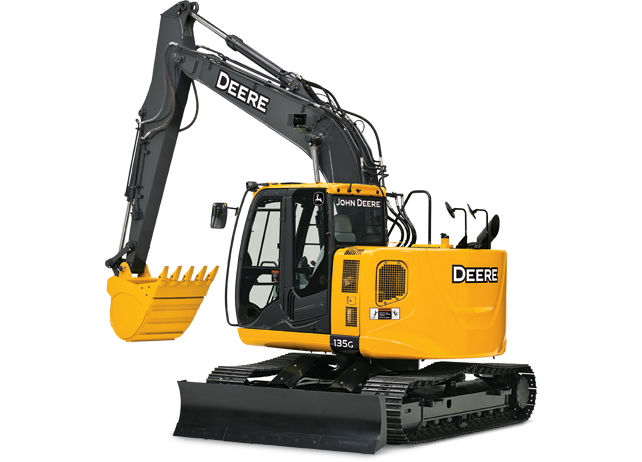

Representative image – models may vary.

Fuel Type: Diesel
Options: 30k lbs / 17'-19' Dig
Typical Models: Case CX135SR - John Deere - 120C - 135C RTS - Kobelco 135SRLC
