7,500 lb Mini Excavator

NEED ASSISTANCE? CALL NOW (855) 253-1369
r4d030662_35g_642x462

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Boom/Stick Option (HEX) 1
Shipping Length of Unit 16 ft in 4880 mm
Shipping Height of Unit 7.7 ft in 2358 mm
Max Cutting Height 14.9 ft in 4539 mm
Max Loading Height 10.1 ft in 3089 mm
Max Reach Along Ground 191.9 ft in 58491.1 mm
Max Vertical Wall Digging Depth 7.2 ft in 2202 mm
Max Digging Depth 122.1 ft in 37216.1 mm
Dimensions
Width to Outside of Tracks 5.1 ft in 1539.2 mm
Length of Track on Ground 5.1 ft in 1562 mm
Height to Top of Cab 7.7 ft in 2356.1 mm
Tail Swing Radius 4.6 ft in 1387 mm
Counterweight Clearance 1.7 ft in 511 mm
Undercarriage
Track Gauge 4 ft in 1220 mm
Shoe Size 12.6 in 320 mm

Specification

Engine
Make Kubota
Model V-2203-M-DI-E2B
Gross Power 40 hp 29.8 kw
Power Measured @ 2400 rpm
Displacement 134.3 cu in 2.2 L
Operational
Operating Weight 7185 lb 3259.1 kg
Fuel Capacity 15.3 gal 57.9 L
Hydraulic Pump Flow Capacity 24 gal/min 90.9 L/min
Swing Mechanism
Swing Speed 9.2 rpm
Undercarriage
Shoe Size 12.6 in 320 mm
Ground Pressure 4.3 psi 29.4 kPa
Max Travel Speed 3.2 mph 5.1 km/h
Track Gauge 4 ft in 1220 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 Stick 1200mm
Shipping Height of Unit 7.7 ft in 2358 mm
Shipping Length of Unit 16 ft in 4880 mm
Max Digging Depth 122.1 ft in 37216.1 mm
Max Reach Along Ground 191.9 ft in 58491.1 mm
Max Cutting Height 14.9 ft in 4539 mm
Max Loading Height 10.1 ft in 3089 mm
Max Vertical Wall Digging Depth 7.2 ft in 2202 mm
Dimensions
Width to Outside of Tracks 5.1 ft in 1539.2 mm
Height to Top of Cab 7.7 ft in 2356.1 mm
Counterweight Clearance 1.7 ft in 511 mm
Tail Swing Radius 4.6 ft in 1387 mm
Length of Track on Ground 5.1 ft in 1562 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

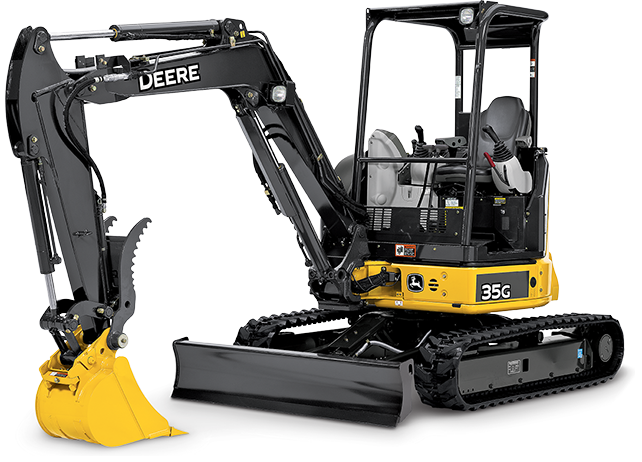

Representative image – models may vary.

Fuel Type: Diesel
Options: 7500 lbs
Typical Models: Bobcat 329 - 331 - JCB 804 - Kobelco 30SR
