3,000 lb LPG Cushion Tire Forklift

NEED ASSISTANCE? CALL NOW (855) 253-1369
hyster_s30ft

Pricing and Availability

(855) 253-1369Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Dimensions
Length to Fork Face 6.8 ft in 2074 mm
Overall Width 3.1 ft in 940 mm
Overall Height – mast lowered 6.8 ft in 2080 mm
Wheelbase 4.3 ft in 1310 mm
Ground Clearance 3.9 in
Max Fork Height 10.6 ft in 3218 mm
MAST
Mast Tip Forward 5 degrees
Mast Tip Rear 5 degrees

Specification

Engine
Make Mazda
Model FE
Power 40 hp 29.8 kw
Torque 91 lb ft 123.4 Nm
Displacement 122 cu in 2 L
Torque Measured @ 1800 rpm
Number of Cylinders 4
Fuel Type LP
Operational
Operating Weight 6563.2 lb 2977 kg
Tire Type Cushion
Number of Front Wheels 2
Number of Rear Wheels 2
Max Speed 10.8 mph 17.4 km/h
MAST
Load Capacity 3000 lb 1360.8 kg
Load Center 24 in 609.6 mm
Mast Tip Forward 5 degrees
Mast Tip Rear 5 degrees
Lift Speed 114 ft/min 34.7 m/min
Lower Speed 93 ft/min 28.3 m/min
Dimensions
Length to Fork Face 6.8 ft in 2074 mm
Overall Width 3.1 ft in 940 mm
Overall Height – mast lowered 6.8 ft in 2080 mm
Max Fork Height 10.6 ft in 3218 mm
Wheelbase 4.3 ft in 1310 mm
Turning Radius 5.8 ft in 1775 mm
Ground Clearance 3.9 in 100 mm
Right Angle Stack 7 ft in 2132 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

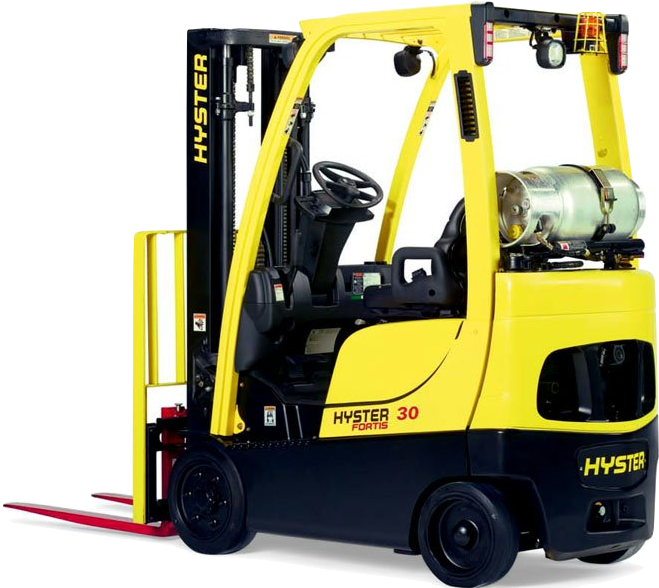

Representative image – models may vary.

Fuel Type: LPG
Options: Cushion Tire
