26 ft Electric Wide Scissor Lift

NEED ASSISTANCE? CALL NOW (888) 325-5172
26 ft Electric Wide Scissor Lift

Pricing and Availability

Call Now(888) 325-5172Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Dimensions
Overall Length 7.9 ft in 2410 mm
Overall Width 3.8 ft in 1170 mm
Height w/ Rails 7.4 ft in 2260 mm
Wheelbase 6.1 ft in 1850 mm
Ground Clearance 3.9 in 100 mm
Platform
Max Platform Height 26 ft in 7920 mm
Platform Width 45.3 in 1150 mm
Platform Length 89 in 2260 mm
Deck Extension 35.8 in 910 mm

Specification

Engine
System Voltage 24 V
Number of Batteries 4
Operational
Operating Weight 4312.2 lb 1956 kg
Hydrauilc System Fluid Capacity 3.8 gal 14.2 L
Max Speed 2.2 mph 3.5 km/h
Tire Size 15x5x11
Tire Fill/Type Solid non-marking
Platform
Max Working Height 32.5 ft in 9920 mm
Max Platform Height 26 ft in 7920 mm
Max Platform Weight Capacity 1000.9 lb 454 kg
Platform Length 89 in 2260 mm
Platform Width 45.3 in 1150 mm
Lift Time 30 sec
Lower Time 38 sec
Deck Extension 35.8 in 910 mm
Dimensions
Overall Length 7.9 ft in 2410 mm
Overall Width 3.8 ft in 1170 mm
Height w/ Rails 7.4 ft in 2260 mm
Height w/o Rails 5.5 ft in 1680 mm
Wheelbase 6.1 ft in 1850 mm
Turning Radius 7.5 ft in 2290 mm
Ground Clearance 3.9 in 100 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

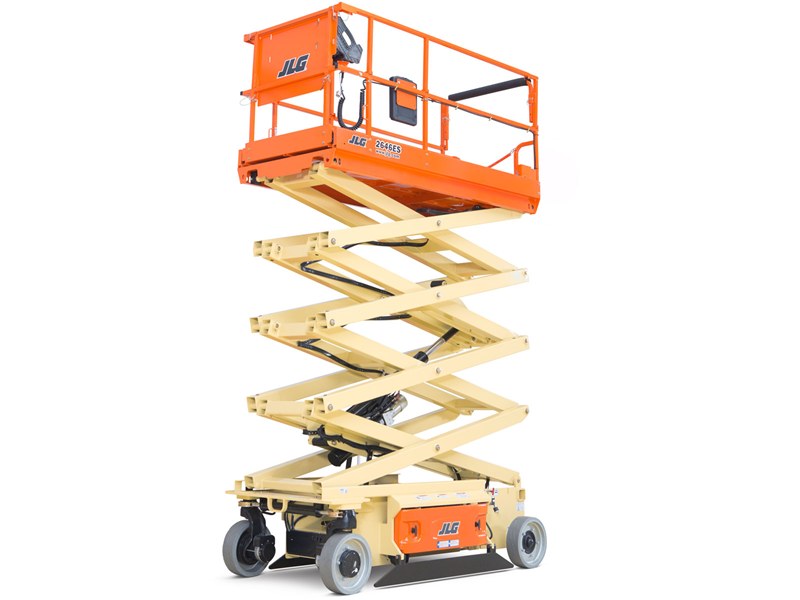

Representative image – models may vary.

Max Lift Height: 26'
Fuel Type: Electric Scissor Lifts
Options: Wide
Typical Models: Genie GS2646 - JLG 2646ES
