5,000 lb 18 ft Reach Forklift

NEED ASSISTANCE? CALL NOW (888) 325-5172
5,000 lb 18 ft Reach Forklift

Pricing and Availability

Call Now(888) 325-5172Reserve your equipment today!

Request A Quote








Details

Selected Dimensions

Dimensions
Length to Fork Face 12.2 ft in 3730 mm
Width Over Tires 5.9 ft in 1800 mm
Overall Height 6.5 ft in 1980 mm
Wheelbase 7.5 ft in 2290 mm
Ground Clearance 0.82 ft in 250 mm
Lift
Max Lift Height 18.8 ft in 5740 mm
Max Forward Reach 11.3 ft in 3430 mm

Specification

Engine
Make Deutz
Model F4M2011
Gross Power 63 hp 47 kw
Number of Cylinders 4
Aspiration
Operational
Operating Weight 10000.2 lb 4536 kg
Fuel Capacity 15.8 gal 59.8 L
Hydraulic System Fluid Capacity 31.7 gal 120 L
Drawbar Pull 10250 lb 4649.3 kg
Tire Size 12 x 16.5 10 ply
Transmission
Type Hydrostatic
Number of Forward Gears
Number of Reverse Gears
Max Speed – forward 15 mph 24.1 km/h
Hydraulic
Pump Type
Pump Flow Capacity 16.9 gal/min 64 L/min
Relief Valve Pressure 3918 psi 27013.6 kPa
Lift
Max Lift Capacity 5511.6 lb 2500 kg
Max Lift Height 18.8 ft in 5740 mm
Max Load at Max Height 4400.4 lb 1996 kg
Max Forward Reach 11.3 ft in 3430 mm
Max Load at Max Reach 1699.8 lb 771 kg
Dimensions
Length to Fork Face 12.2 ft in 3730 mm
Width Over Tires 5.9 ft in 1800 mm
Overall Height 6.5 ft in 1980 mm
Wheelbase 7.5 ft in 2290 mm
Ground Clearance 0.82 ft in 250 mm
Turning Radius Outside Tires 11 ft in 3350 mm

You will receive a rental product of similar specifications to the above models, based on availability in your area. A specific make and model cannot be guaranteed.

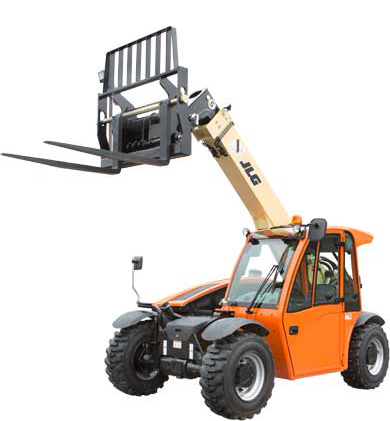

Representative image – models may vary.

Max Lift and Reach: 5000 lb
Fuel Type: Diesel
Options: 4WD
Typical Models: JLG 5519
